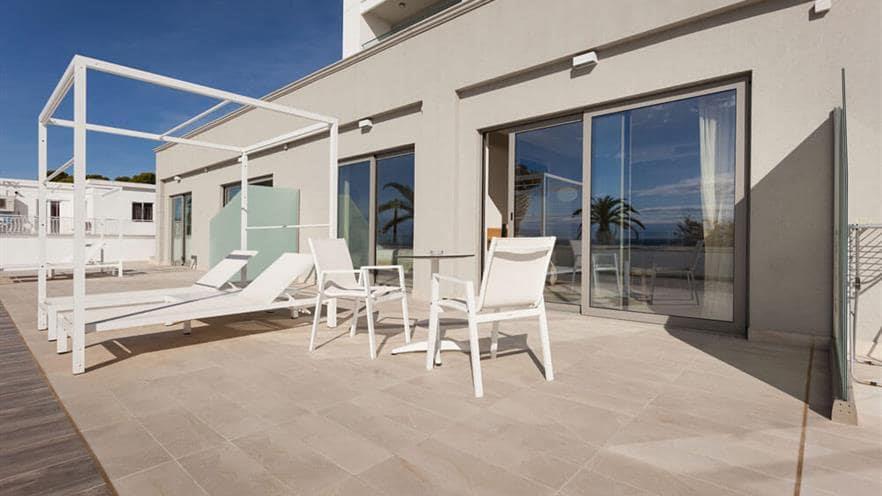

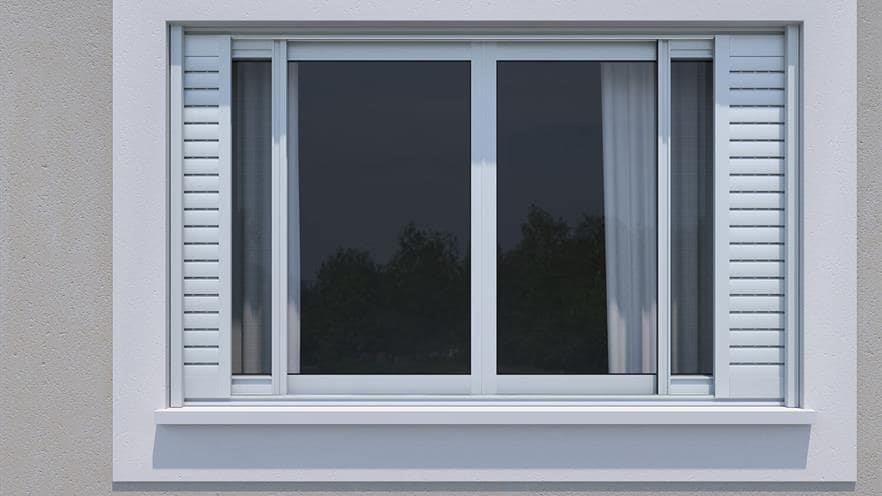

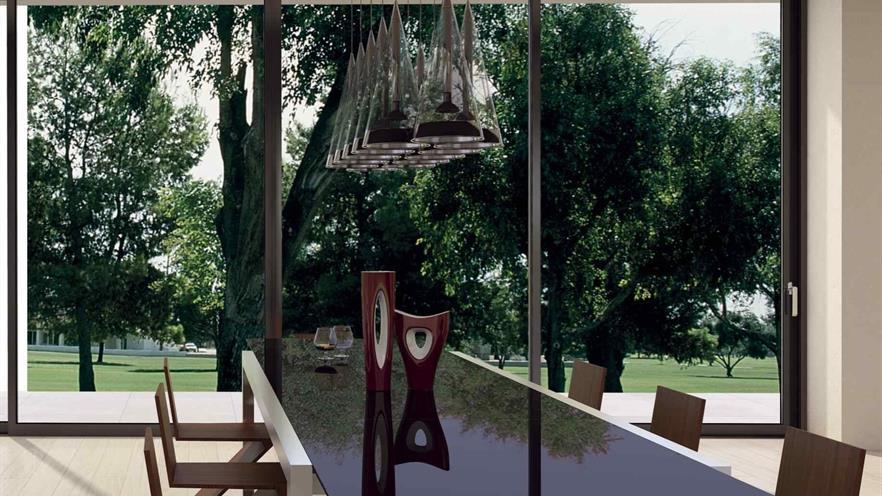

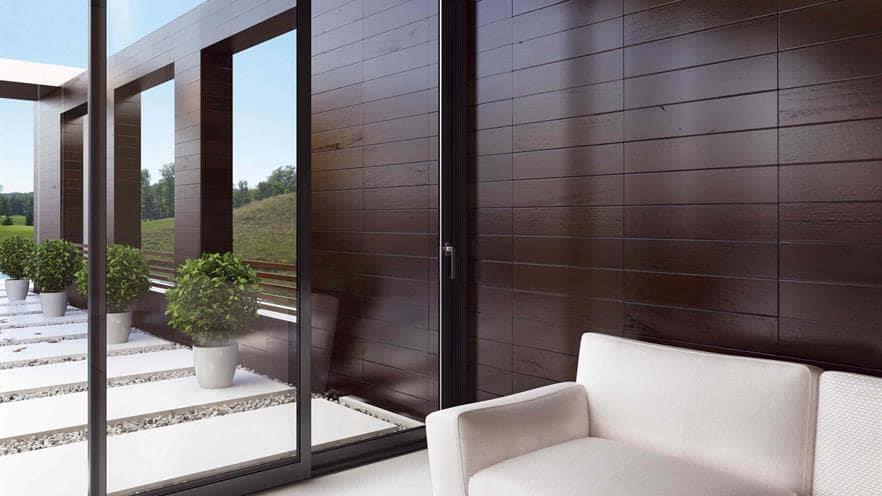

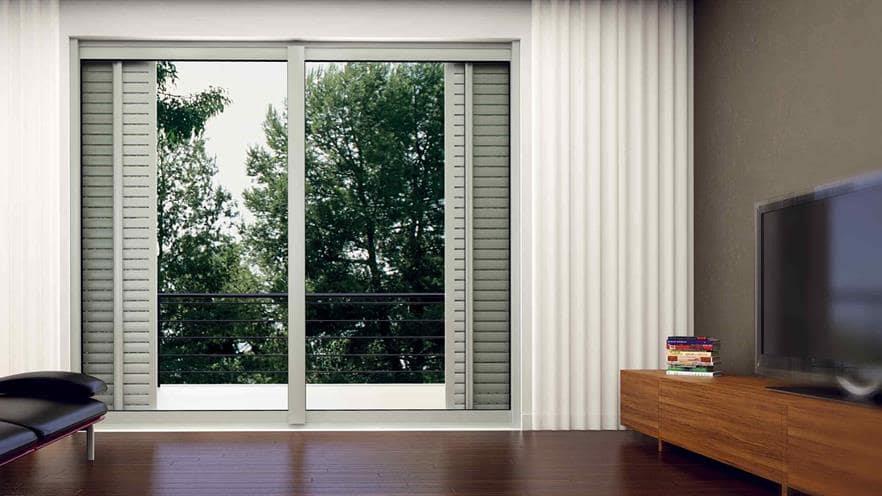

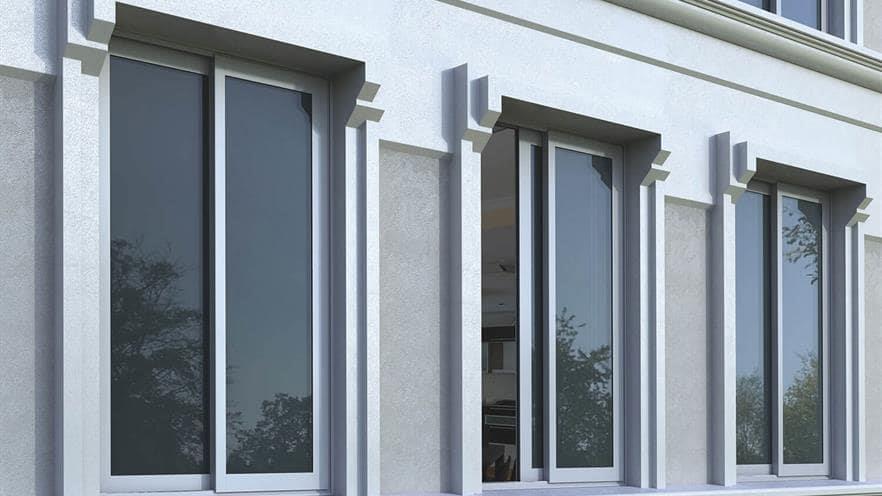

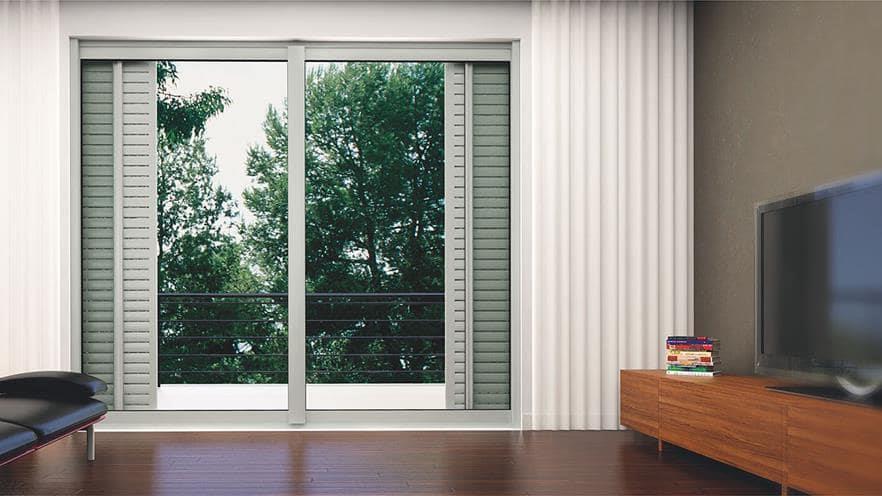

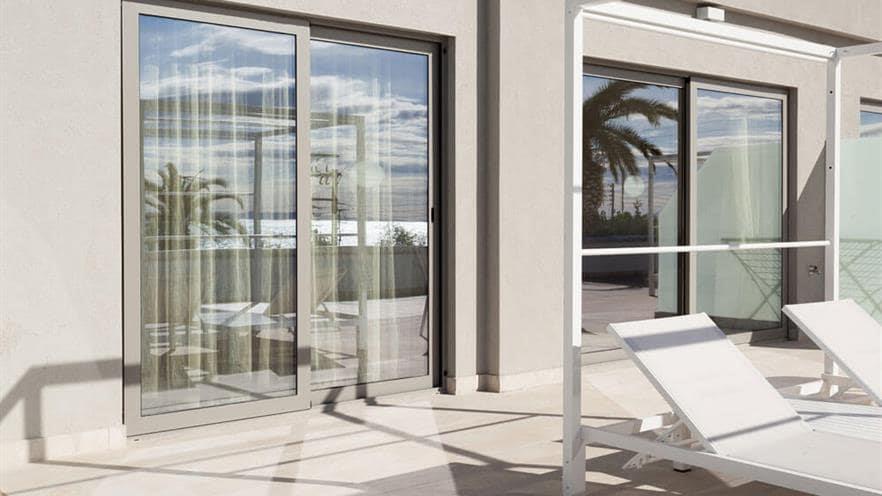

Sliding insulated system SMARTIA BM-350S

Description

BM-350S is a modern & flexible insulated sliding system with a modern flat design. It is ideal for refurbishments or renovations thanks to its construction easiness.

Advantages

  • Excellent value for money
  • Fairly high energy efficiency
  • Special solutions for hotels
  • Competitive manufacturing costs due to reduced fabrication time
  • Numerous alternative solutions
  • Good sound insulation
  • Sensible natural lighting enhancement thanks to the design of the system
  • High quality frame with certified performance

Generic

WINDOWS TYPES THERMAL INSULATION EXTERIOR SHAPES
Sliding Yes Curved, Flat

Technical Characteristics

SASH DEPTH SASH WEIGHT MINIMUM VISIBLE ALUMINIUM FACE HEIGHT MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE) MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE) GLAZING TYPE MAXIMUM GLAZING THICKNESS MECHANISM SEALING METHOD TYPE OF THERMAL INSULATION
35 mm up to 180 Kg 107 mm 102 mm 25 mm Double up to 28 mm Perimetrical locking mechanism Continuous perimetrical tri fin in two levels brush Polyamides 24 mm, PVC parts

Performance

UF WATER TIGHTNESS AIR PERMEABILITY WIND LOAD RESISTANCE SOUND REDUCTION
from 2,9 up to 4,8 W/m²K CLASS 6Α CLASS 3 C2/B3 28 dB

Characteristics

TYPES OF TYPOLOGY
Horizontal sliding, meeting stile, Pocket sliding

TYPOLOGIES

Double horizontal sliding sash
Triple horizontal sliding sash
Four horizontal sliding sashes with meeting stile
Double horizontal parallel sliding window with fly-screen
Quadruple horizontal parallel sliding with meeting stile & fly-screen
Double horizontal parallel sliding window with fly-screen & rolling shutter
Horizontal sliding pocket sash with shutter
Single horizontal sliding pocket sash with fly-screen and shutter
Double pocket horizontal sliding window with fly-screen & shutter
Single horizontal sliding pocket sash with fly-screen and rolling shutter
Double horizontal parallel sliding window with fixed fanlight
Single sliding sash with fixed light
