Hinged insulated system BM-11000

Description

BM-11000 is a Tilt & Turn insulated hinged system that can meet the most demanding needs thanks to a large variety of solutions and designs

Advantages

  • High value for money
  • High energy savings due to the high energy efficiency of the system
  • Special solutions for Hotels
  • Wide variety of solutions
  • Increased level of security
  • High level of sound insulation
  • Ease of use and high functionality
  • Modern design for windows either with flat or curved line
  • Enhanced natural light thanks to the ability to use hidden sash
  • High quality with certified performance
  • Increased static loads and functionality in case of severe weather conditions

Generic

WINDOWS TYPES THERMAL INSULATION EXTERIOR SHAPES
Hinged Yes Classic, Curved, Flat

Technical Characteristics

FRAME DEPTH SASH DEPTH SASH WEIGHT MINIMUM VISIBLE ALUMINIUM FACE HEIGHT MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE) GLAZING TYPE MAXIMUM GLAZING THICKNESS MECHANISM SEALING METHOD TYPE OF THERMAL INSULATION
62,5 mm 70 mm up to 180 Kg 70 mm 61 mm Single – Double – Triple from 20 up to 59 mm Euro-groove, Euro-nut Perimetrical at 3 levels with EPDM gaskets Polyamides 24 mm & 20 mm

Performance

UF WATER TIGHTNESS AIR PERMEABILITY SOUND REDUCTION
from 2,3 up to 2,9 W/m²K CLASS Ε900 CLASS 4 47 dB

Characteristics

TYPES OF TYPOLOGY
For all tilt & turn typologies

TYPOLOGIES

One sash tilt and turn
Τilt and turn with fix light on top
Τilt and turn with fanlight
Double tilt and turn window
Double tilt and turn with light
Horizontal pivot window
Vertical pivot window
Double tilt and turn window with fixed light
Double tilt and turn with fanlight
Double tilt and turn with fixed lights sideways
Single tilt & turn casement (Concealed sash)
Single tilt & turn casement with fixed light (Concealed sash)
Single tilt & turn casement with fixed light (Concealed sash)

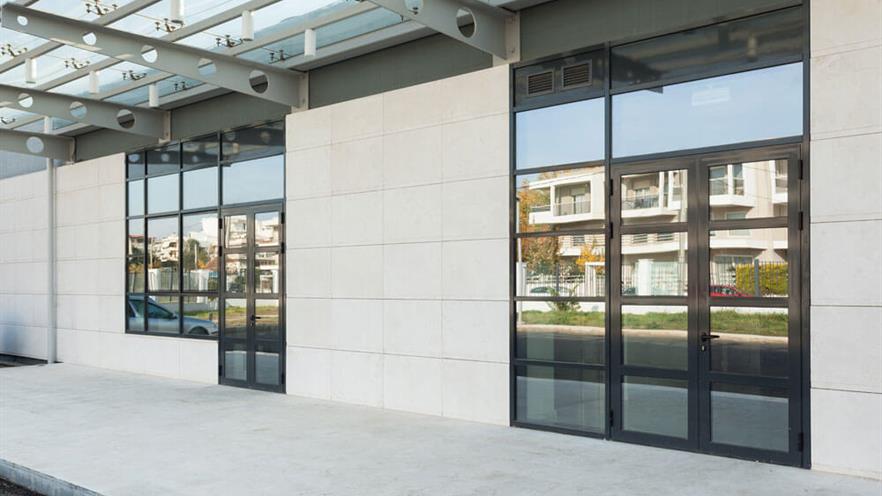

Hinged door inwards/outwards

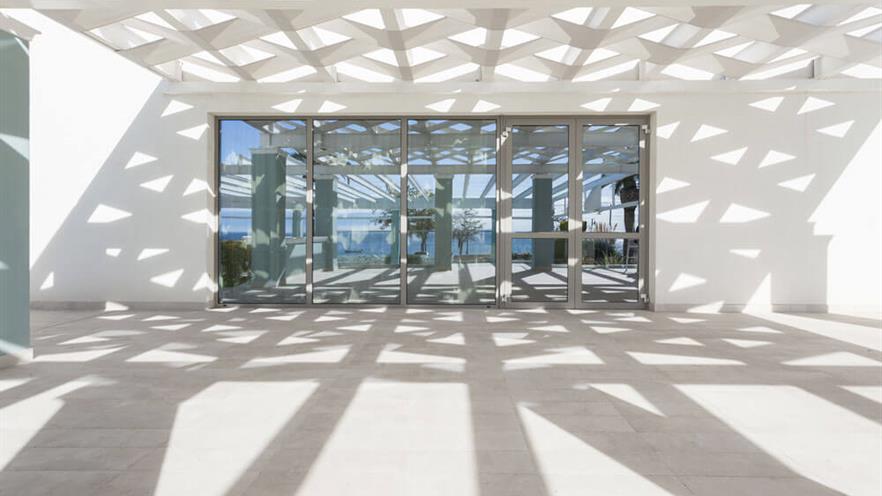

Double leaf door inwards/outwards opening
Hinged door inwards/outwards with insulation panel & fixed pane
Hinged door inwards/outwards with insulation panel, fixed pane & fanlight
